Memory dumps of a developer

Articles and tutorials on .NET Core, ASP.NET MVC, Kendo UI, Windows 10, Windows Mobile, Orchard

  • Converting a .NET Core RC2 Web Application to RTM

    After two years in the works, Microsoft has released .NET Core to the public in the last week of June. Prior to that they had released two RC version of the framework and many of the developers like us embraced it and started working with it. To make those projects work in .NET Core 1.0 we need to  make some changes in the project so that it continues to work properly in the RTM version too.

    About .NET Core 1.0

    .NET Core 1.0 is available for Windows, Linux and MacOS and can be used to create web apps, microservices, libraries and console applications. Along with the release, they have also introduced a new site called which is a central location for all the information about .NET framework including .NET Core.

    The easiest way to install .NET Core 1.0 in your machine is by installing the Visual Studio 2015 with Update 3. If you are not using Visual Studio, then you can go ahead and download the following which meets your requirements

    .NET Core SDK - For developing apps with .NET Core and CLI tools

    .NET Core - For running apps with .NET Core Runtime

    Please refer here for more details for downloads

    Upgrading to RTM

    Unlike upgrading from RC1 to RC2, the process for RC2 to 1.0 is pretty straight forward and I was able to complete the whole process within 15 minutes for a simple .NET Core MVC application.

    Step 1 : Replace all the references with 1.0.0-rc2-final to 1.0.0 in the project.json file

    "Microsoft.AspNetCore.Diagnostics": "1.0.0-rc2-final",
    "Microsoft.AspNetCore.Server.IISIntegration": "1.0.0-rc2-final",
    "Microsoft.AspNetCore.Mvc": "1.0.0-rc2-final",


    "Microsoft.AspNetCore.Diagnostics": "1.0.0",
    "Microsoft.AspNetCore.Server.IISIntegration": "1.0.0",
    "Microsoft.AspNetCore.Mvc": "1.0.0",

  • Adding Google Verification File in Orchard CMS

    Whenever you want to serve a static file from your Orchard website, you will get a 404 error(page note found) error by default. This is happening for Orchard because in the web.config file the default configuration is set to return a page not found error for all the static files in the root. This will become an annoying issue whenever you try to verify the identity of the website by uploading a verification file in the root folder as I found out when I wanted to verify the identity of my site from Google Search Console.

    This is issue can be resolved in two ways,

    1. Configure a route in ASP.NET MVC to serve the static page.

    2. Modify the web.config file in the route to return the correct page instead of 404

    I will explain the steps needed to overcome this issue using the second approach. In this step, you needs to make couple of changes in the web.config file in the root directory of your Orchard site. The modifications is to be done in the sections <httpHandlers> and in <handlers> inside <system.webServer>. It is recommended to make these changes in both the places so that it works both on IIS6 and IIS7.

    By default the <httpHandlers> and <handlers> sections will have the following entries in it

        <add path="*" verb="*" type="System.Web.StaticFileHandler"></add>

    <handlers accessPolicy="Script">
    <add name="NotFound" path="*" verb="*" type="System.Web.HttpNotFoundHandler" preCondition="integratedMode" requireAccess="Script"/>

    I have omitted some entries from the config file in the following snippet as it's not relevant for the topic which is being discussed in this post. Basically these two entries are telling the web server to return a page not found error whenever we request for a static file. So we will add the following entries into the config file for ignoring this rule.

    <add path="file.html" verb="*" type="System.Web.StaticFileHandler" />
    <add path="*" verb="*" type="System.Web.StaticFileHandler"/>

    <handlers accessPolicy="Script, Read">

    <add name="VerificationFile" path="file.html" verb="*" modules="StaticFileModule" preCondition="integratedMode"
    resourceType="file" requireAccess="Read" />

    <add name="NotFound" path="*" verb="*" type="System.Web.HttpNotFoundHandler" preCondition="integratedMode" requireAccess="Script"/>

    Please make a note of the following points to make our solution work

    1. If you add the entries before the existing ones which says to serve the 404, then our entries doesn't have any effect. So you should always over statement above the existing one.
    2. Give Read permission in accessPolicy for handlers in <system.webServer> section.
    3. Make sure that the name provided is unique across the handler entries in the config file.

  • Logging into Console in ASP.NET Core MVC Application

    One of the important upgrades happened in .NET Core is the complete rewrite of the diagnostic logging pipeline which emits different events for logging errors. .NET Core now supports logging framework out of the box and also supports extensibility to make use of third party logging frameworks such as Log4Net, NLog etc. Logging can be implemented in quick time with a minimal amount of code in your application.

    Microsoft uses Microsoft.Extensions.Logging namespace for implement logging functionality and acts a wrapper for third party logging frameworks. This eradicates the need of writing our own logging framework to provide abstraction for third party frameworks such NLog, Log4Net etc. Also it has got inbuilt providers for supporting logging into Console, Event log, Trace Logging etc.

    Console logging in ASP.NET Core MVC application.

    As I said earlier logging has got inbuilt support provided by the ILogger class in .NET Core. For that, first we need to add a reference to the Microsoft.Extensions.Logging package in project.json file. Add the following entries under dependencies section in the json file for implementing providers for console and debug logging.

    "Microsoft.Extensions.Logging": "1.0.0-rc2-final",
    "Microsoft.Extensions.Logging.Console": "1.0.0-rc2-final",
    "Microsoft.Extensions.Logging.Debug": "1.0.0-rc2-final",

  • Custom Error Pages in ASP.NET Core MVC Application Using StatusCodePages Middleware

    While developing a web application, one of the best practice every developer should follow is to set up a custom error page for the site. Showing that dreaded yellow page to the user during the occurance of an exception is highly unprofessional and is prone to security risks. In one of the earlier post in the blog, I have explained the use of StatusCodePages middleware and various approaches for implementing it in a ASP.NET Core web application.

    In this post, I am going to implement custom error handling in an ASP.NET Core MVC application using the StatusCodePages Middleware. I will use the UseStatusCodePagesWithReExecute method provided by the middleware for showing the error the page in the case of an error. So let's add the following line in the Configure method in the Startup.cs file as shown below


    This method is telling the web server to execute the action method name Index in the ErrorController. Since we are using the ReExecute method the redirection will happen in the server itself thereby avoiding a round trip between the server and the client.

    Now, we need to create the controller and the action method in it. Create a file in the Controller folder, save it as ErrorController.cs and add the following lines in it

  • Creating and Running Unit Tests for a .NET Core Application

    Unit testing has become a major part in the daily life of a developer these days and most of them are expected to write unit tests when they add a new functionality in the software that is under development. There are lot of third party tools like NUnit, xUnit as well as MS Test framework for writing unit tests for applications developed in .NET. In this post, I am going to detail the steps needed for adding unit test in .NET Core app using Microsoft Test Framework.

    Creating Project

    Let's create a simple .NET Core console application project and then a unit test project for running the tests. For that I have created two folders, src and test for each project and added these in the projects key in global.json file in the root directory.

    "projects":["src", "test"]

    After that, I created the console application using the dotnet new command and the contents of the Program.cs file and project.json is given below.


    Created a new class and added a new method which returns the sum of the values in the two variables passed into it.

  • Hosting ASP.NET Core Web App in Docker and Accessing it from outside

    In one of the earlier posts here, I have explained the steps needed to deploy a console application created in your local machine into a docker container. Today, I am going to go through the various steps needed for deploying a .NET Core web app into a Docker container using a dockerfile.

    Please refer the links given towards the bottom of the post to know more about Docker for Windows and .NET Core Apps.

    Creating the Project.

    In this post, I am going to use Yeoman for scaffolding a ASP.NET Core web app from the command prompt. You can read more about Yeoman and how to set it up in machine by referring the links given below.

    Getting Started With Yeoman
    Scaffolding Using Yeoman

    The command used for scaffolding a ASP.NET Core web app is

    yo aspnet

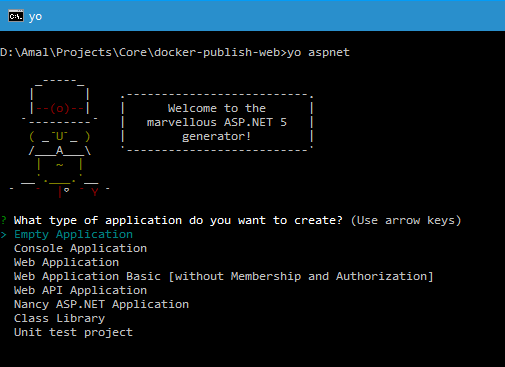

    When this command is executed, Yeoman will list the available options as shown in the image below.

  • Using StatusCodePages middleware in ASP.NET Core Application

    In ASP.NET Web and MVC applications, we have a customErrors.Mode property in the web.config file to specify custom error pages for exceptions happening in the application.

    In an ASP.NET Core web application we can make use of the UseStatusPages middleware to return a custom error page or a error message to the output stream. The middleware can be used to return a custom error message or page when there is an invlid response code between 400 and 600. Normally, the 4xx error is used for client errors where as 5xx is used for server errors.

    To explain the various options available in the middleware, I am going to use a ASP.NET Core web application created using Visual Studio Code and .NET CLI tools to run the application. You can also do the same using Visual Studio IDE too.

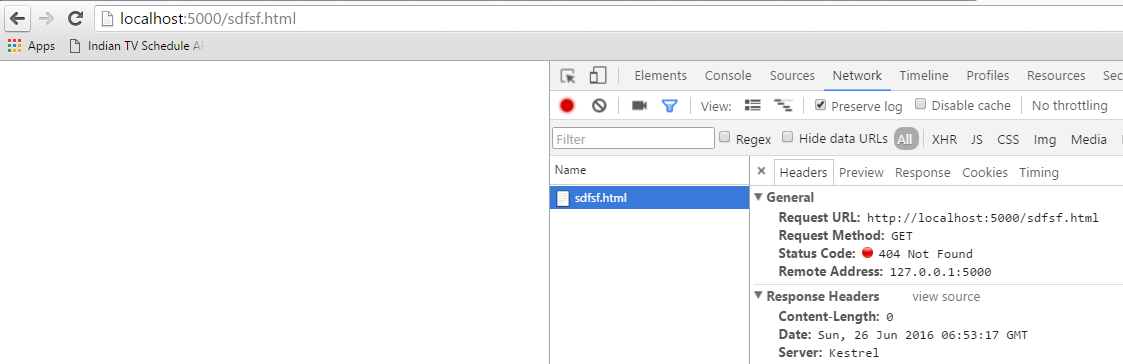

    Let's create a empty MVC project and run the application using the dotnet run command. It will self host the application and exposes port# 5000 for accessing the site. Open the site in the default browser by typing in http://localhost:5000/ and if you try to access a page which doesn't exists in the project, the browser will show an empty page or a page with a message saying that Page not found. Given below is the screenshot of the page I got in Chrome. If you open up the developer tools by pressing F12, you can see that the response from the server has 404 as status code.

  • Pushing images to Docker Repository

    Today, in this post I am going to explain the steps needed for publishing an image in your local Docker daemon to the Docker hub.

    Docker hub is central registry of images maintained by Docker. We can use the images to build containers by downloading them into the local machine. For example, in of the previous post, I showed you how to build and deploy .NET core apps in Docker. This was done by downloading the .NET Core image from the Docker repository to my local machine and created the console application using the downloaded image and deployed it to a container.

    You can access the public repository of Microsoft for Docker images @

    The main difference between a registry and repository in Docker terms is that, Registry can be hosted by a third party like Docker hub, Google Container Registry where as a docker repository is collection of different images with same name but with different tags.

    So let's see how can we push our image in the Docker repository.

    Step 1 : Create an account in Docker Hub.

    It's necessary that you should have an account with Docker for maintaining your repositories. So if you haven't created one yet, goto and create if before proceeding to the next steps.

    Step 2 : Create an Image locally.

    Please refer my earlier post here to how to create a console application using .NET Core in Docker. I am going to reuse the image created in that post for pushing it into the public repository.

  • Publishing .NET Core Application in Docker Using DockerFile

    In one of the earlier posts in the blog, I have showed you how to create and run a console application created in .NET Core from a docker container. Please refer the post here to know the details about it. In this post I am going to show you can publish an app created in the host machine to Docker container using a dockerfile.

    A dockerfile is used by Docker to build automatically by reading the instructions inside it. The complete help file is available in Docker documentation site and you refer that for detailed information on the commands that can be used in the file.

    You can go through my earlier posts on how to setup Docker for Windows Beta in your machine and how to troubleshoot issues you face while trying to get started with Docker in your Windows machine.

    Also I will be using .NET Core for creating the console application and will be using the CLI commands and a normal editor for writing the source code for this example on a Windows 10 machine.

    Creating Project

    Let's create a new HelloWorld project in .NET Core using the following command.

    dotnet new

    The above command will create a boilerplate console application which will have a C# file named Program.cs and a project.json file which will have dependencies specified.

  • Json.NET - Finding an element in a JArray Object

    Recently I hit a roadblock in parsing and finding an element in a JArray object in one of the projects which I was working at my workplace. I was working with JSON string like the one given below.

    "[{'Name':'Amal', 'Country':'India'},{'Name':'Luke', 'Country':'England'},{'Name':'Tom', 'Country':'Australia'}, {'Name':'Ram', 'Country':'India'}]"

    It was an array of items which has got two keys named Name and Country and I want to return the object if the search criteria is matched. I can use the combination of a foreach loop and condition check to retrieve the item, but I didn't want to use that because I felt that it's not the proper way to do it. Also, I didn't wanted to create a new class to bind these elements because I just needed to find whether this string has value for a particular key and return the object if found. So I did some research on this topic and finally resolved it using the SelectToken method available in JSON.NET.

    First you need to add the JSON.NET package to your project via NuGet. Then import the Newtonsoft.Json.Linq namespace to your class using the below statement.

    using Newtonsoft.Json.Linq;

    Next up is to parse the json string to an array using the JArray.Parse() method.

    var jArrObject = JArray.Parse(<JSON string>);

    Now we will make use of the JSONPath queries to search for the item

    var srchItem = jArrObject.SelectToken("$.[?(@.<key name>=='<value>')]");

    If you search result is going to have more than one values then you need to make use of the SelectTokens() method.

    var items = jArrObject.SelectTokens("$.[?(@.<key name>=='<value>')]");

    In JSONPath syntax,

    $ -> root element

    .  -> child operator

    [] -> subscript operator

    ?() -> used to apply a filter

    So in our case the expression is equivalent to saying that For all($) elements in the string return the item if the current element(@) is matching the specified filter(<key name>=='<value>').

    You can refer the documentation here to know more about the JSONPath syntax.
